40" Komori-Chambon Lithographic Web Offset Printing Press

No longer available

40" Komori-Chambon Lithographic Web Offset Printing Press

Location:Australia

Description

Komori-Chambon Lithographic Web Offset Printing Press


Machine Type 8 7KL type. 40" sleeve offset

Installed year 2012

Running time since installation 25375 hours as at 27/5/2021.

Reel to reel only on twelve inch cores.

Eight print decks (EB Inks).

One reverse flexographic print deck (thermal cure): Menschick Type FDT-10.25.

One hole punch unit.

Web flow from right to left from operator’s point of view.

Substrate: film, paper, cardboard or laminated board.

Printing width range 20" to 40"

Print-to-print register accuracy +/- 0.05 mm, up to 8 units, depending on substrate, for 95% of product. Eltromat Registar 20 system.

The printing is effected wet-on-wet then passes through an electron beam dryer, which cures all colours at the same time.

Print plate repeat (cylinder circumference) infinitely variable from 21" to 43", with 3 mm non-printed gap.

Blanket repeat (cylinder circumference) infinitely variable from 26 .5 " to 43" , with 9 mm non-printed gap.

Available print repeat cylinders

33" : 22 Plate and 11 Blanket.

37" : 16 Plate and 8 Blanket.

35" : 16 Plate and 9 Blanket.

31" : 16 Plate and 9 Blanket.

31" : 16 Plate and 8 Blanket.

33 Ink keys per deck.

Up to 375 metres per minute.

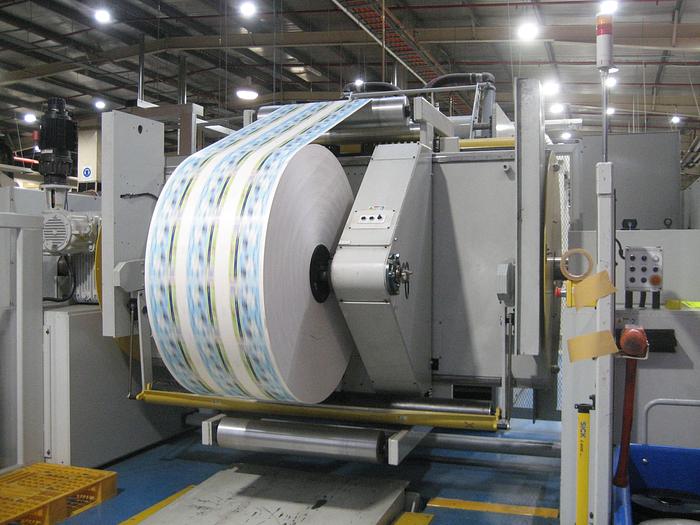

Dual turret Martin Automatic unwind Model MCB 12-40-72


Please inquire for more info Videos available

Specifications

Manufacturer40" Komori-Chambon Lithographic Web Offset Printing Press
ConditionUsed
